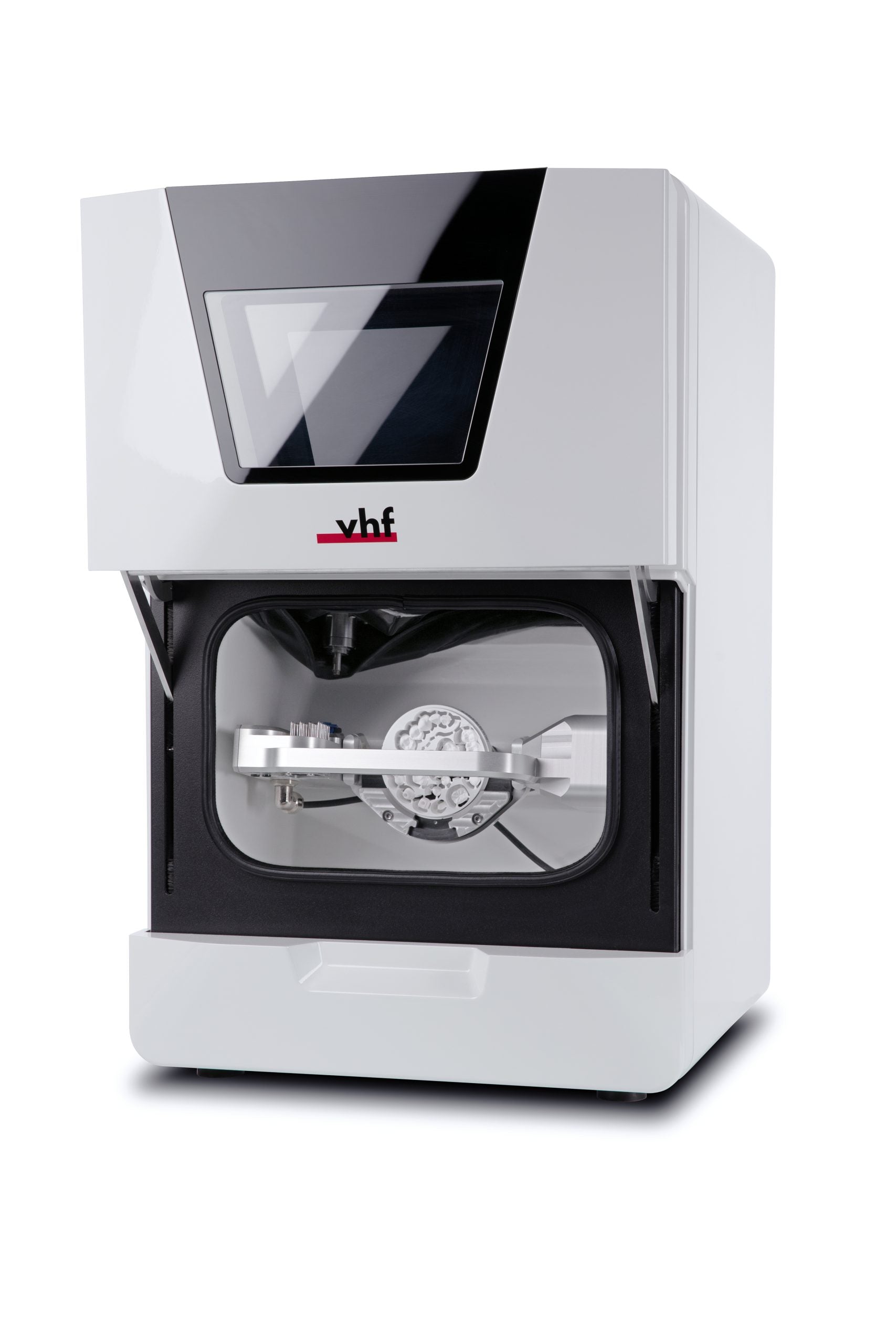

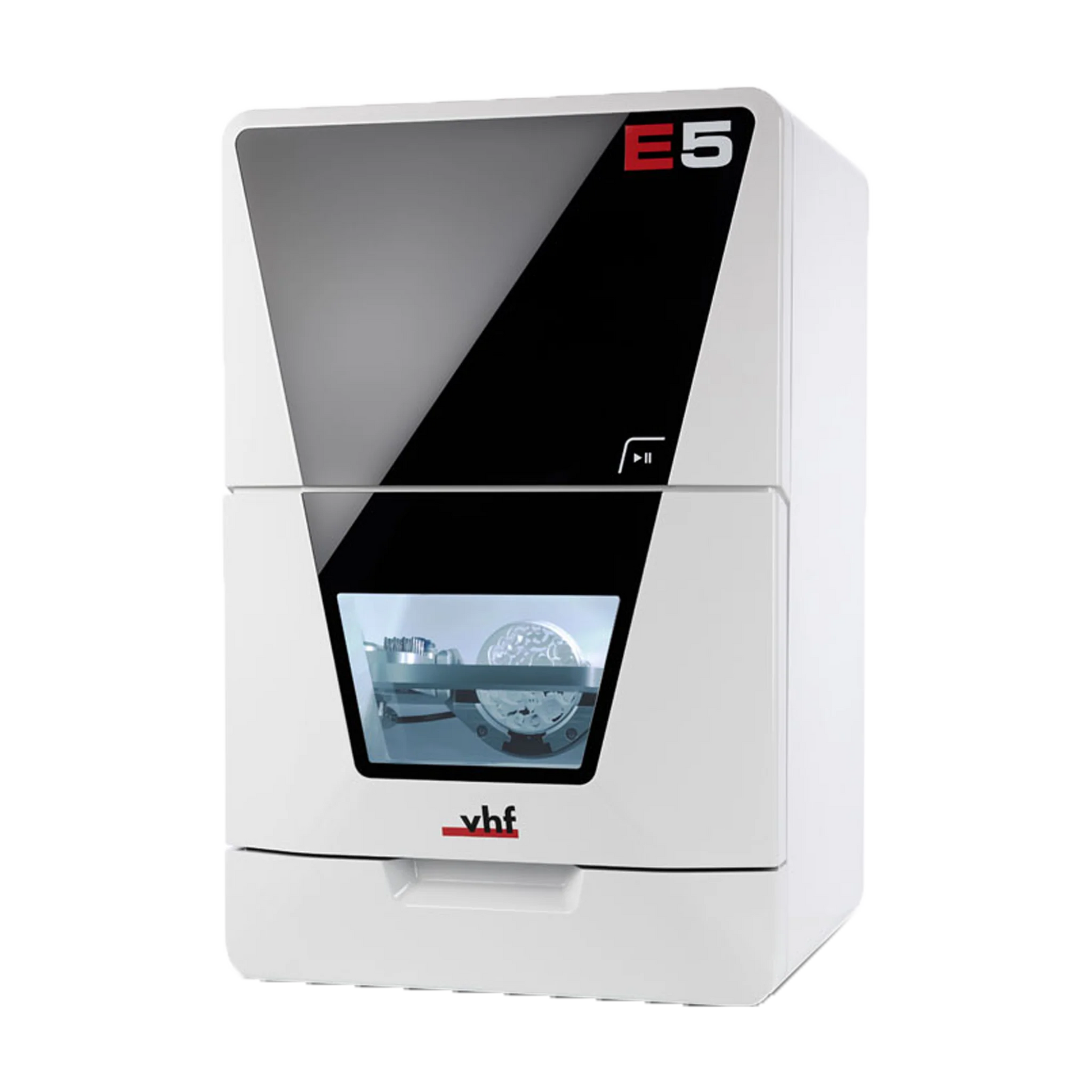

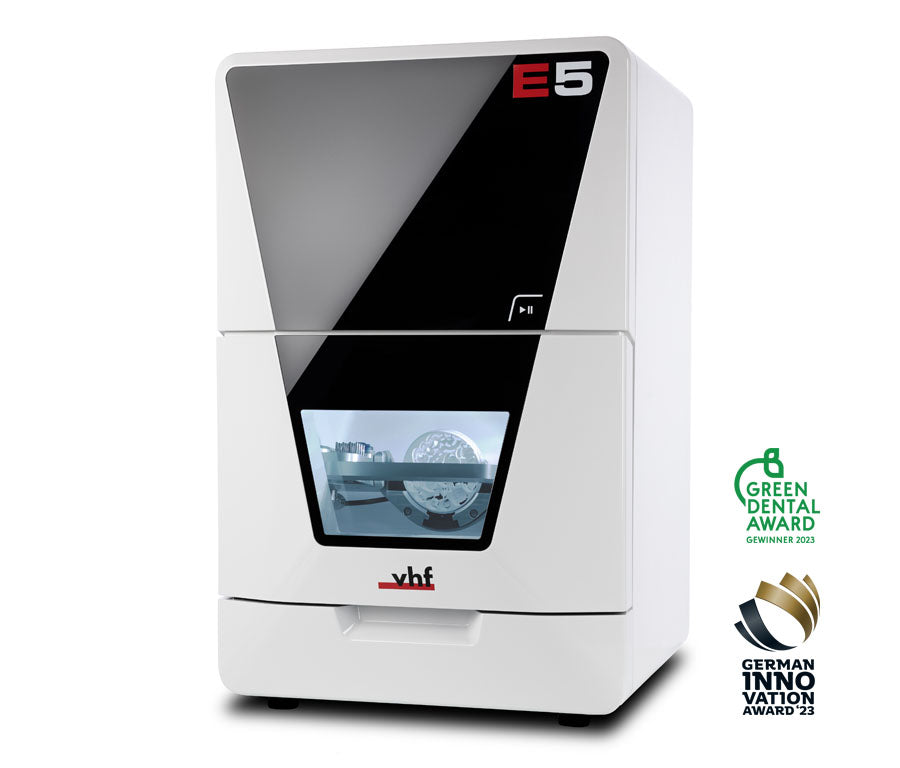

vhf E5 5-Axis Milling Machine

The vhf E5 is a compact 5-axis dry milling machine designed to make in-office dental production simple and efficient. Its innovative AIRTOOL eliminates the need for an external compressed-air connection, while the 17-position tool changer supports reliable, automated production.

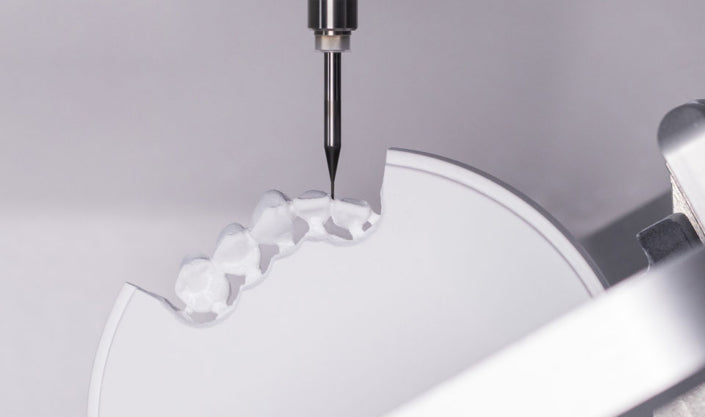

The E5 processes standard 98 mm discs or up to six blocks and is compatible with materials including zirconia, PMMA, composites, and sintered CoCr.

Key Features & Specifications

Axes: 5 simultaneous axes with a B-axis rotation angle of ±35°

Spindle: 800 W high-frequency spindle operating at up to 60,000 rpm

Compressed Air: No external compressed air required; the patent-pending AIRTOOL uses turbine blades to clear chips during milling

Tool Changer: Automatic 17-position magazine with space for 16 dental tools and one AIRTOOL

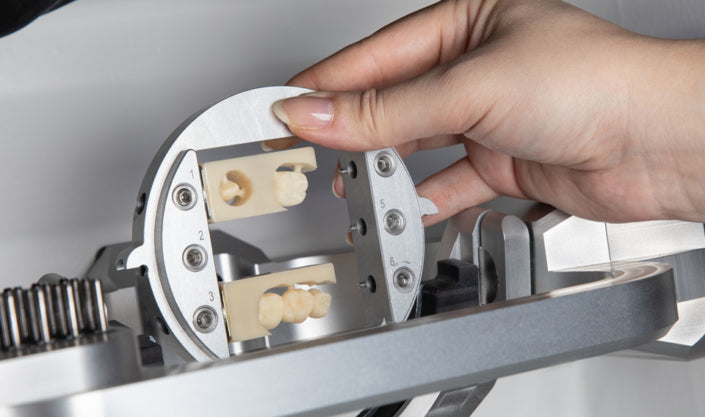

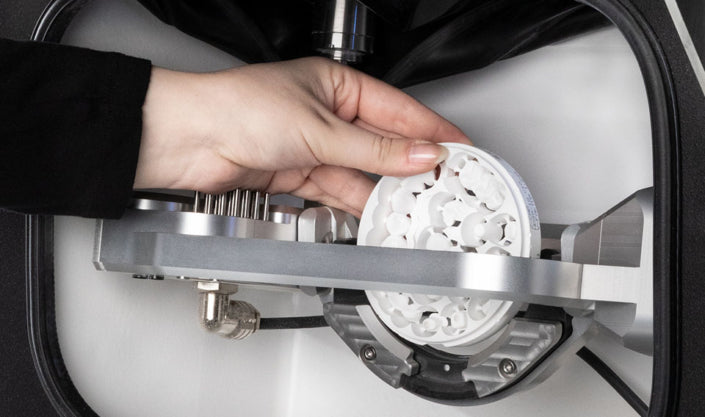

Material Formats: Standard 98 mm discs or up to six blocks

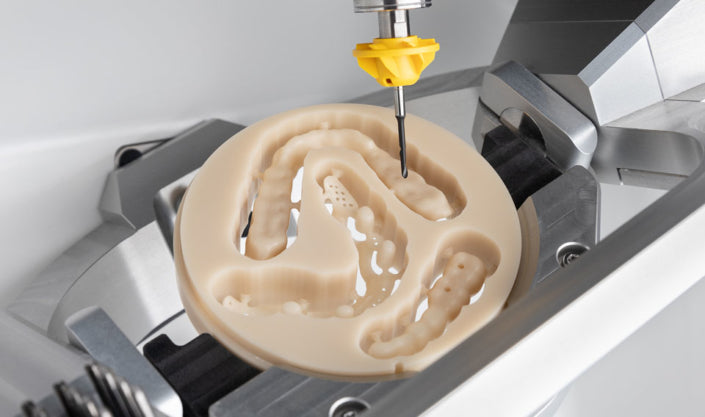

Compatible Materials: Zirconia, PMMA, composites, and sintered CoCr

vhf Direct Support Plan

Every new vhf mill includes enrollment in the vhf Direct Support Plan, providing direct access to vhf’s highly trained technical support team. Customers can call or email vhf for remote assistance and receive priority support directly from the manufacturer.

The plan also includes:

Access to 24/7 chatbot and AI-guided assistance

One complimentary DentalCAM training session—a $660 value

Two hours of complimentary customized training—a $300 value

Coverage for multiple vhf mills under one support plan

The vhf Direct Support Plan is $99 per month. The first year is paid at the time of purchase. Monthly payments are available in subsequent years with a one-year commitment.

Customers must create an account at myvhf.com to participate in the support plan.
